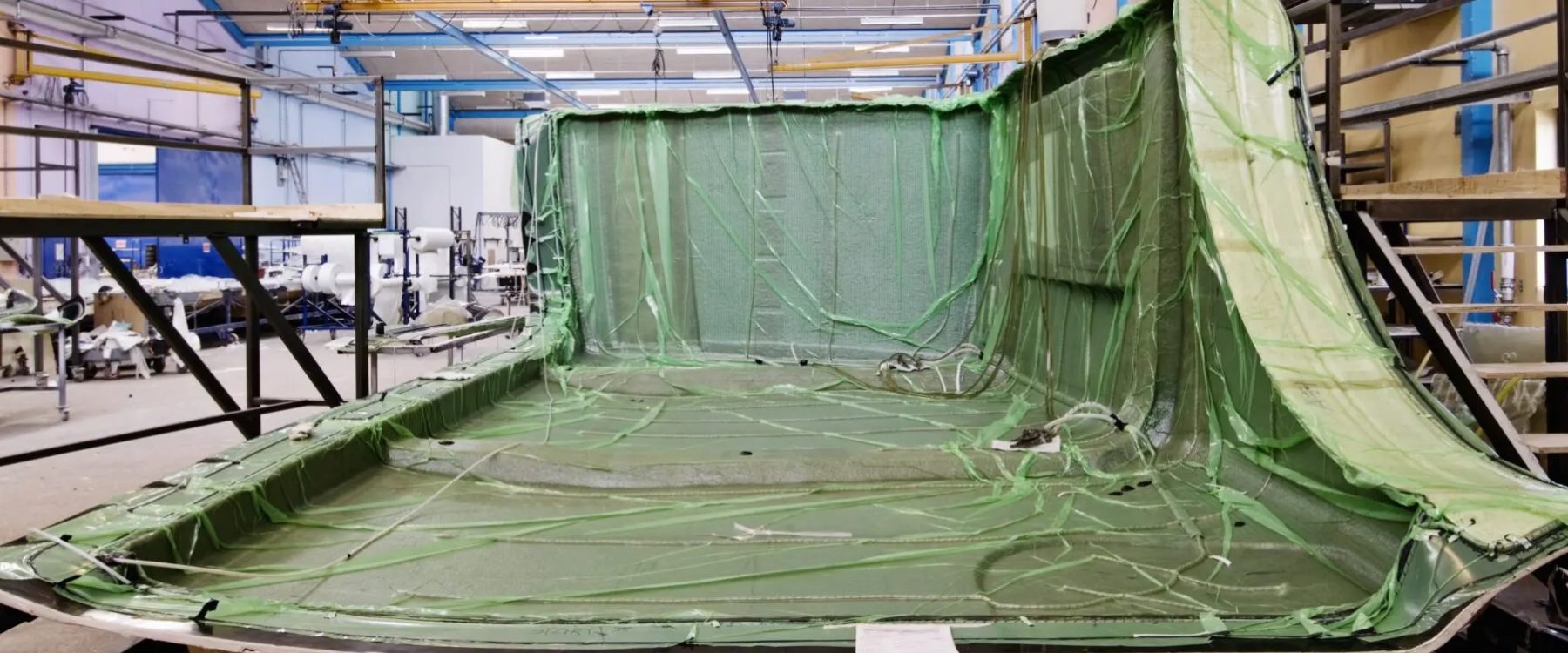

Vacuum Infusion

Extra large extruded advanced copolymer vacuum film.
This film behaves 3 layers: 2 auto-release copolymer layers and one polyamide layer in the middle.

• Can be used for either vacuum moulding or vacuum infusion technologies. PO120 allows the moulding of complex forms.
• Exceptional conformable characteristics.
• Can be used in direct contact to the resin.
• Styrene resistant film.
• Non porous.

Products designed to drain air, solvents and pump excess resin during vacuum molding of composites.
100% non-woven polyester felts.

FR version (Fire Retardant) available for PES 150 and PES 340 to reduce the risk of fire in autoclave.

Suitable for complex shapes.
Good deformability.

DIABREAKER is a vacuum line made of a non-woven polyester filled with thermoplastic microspheres, laminated with a release film, and holding a spiral tube which maintains the vacuum all along the product.

• DIABREAKER avoids over-consumption of resin by slowing down the resin as soon as the flow front gets into contact with it, while keeping the resin moving forward, and maintaining a good vacuum level.
• DIABREAKER allows to drain entrapped air bubbles, to get fully infused fibers,
• Thanks to ELA20 release film, the product is easily peeled off from the part during demolding operation.

DIADRAIN is a flat resin or vacuum channel. It consists of a three-dimensional polyester filament core structure wrapped in a non woven polyester sleeve.

• Works as resin supply channel or vacuum channel in vacuum infusion process.
• Flexible. Easy to cut to size.

DIADRAIN MP is placed around the mold instead of the spiral pipe: when the resin reaches DIADRAIN MP, it is stopped meanwhile the gas is still eliminated from the laminate. DIADRAIN MP can also be set at any place on the laminate.

• Very fast implementation of vacuum channels
• Flexible.
  Easy to cut to size.

Knitted net bleeder with a very high porosity allowing good air and resin flow, is recommended for vacuum infusion technology with polyester, vinylester or epoxy resins.

Can be used in vacuum molding process for debulking of prepregs.

• Recommended for very large part and high speed flow infusion.
• Available in INFUPLEX version for easy implementation.
• Heat-stabilized and de-oiled in order to avoid the rolling up of the flanges and contamination of the resin.

Recommended for the vacuum molding (P3) or infusion
technology (P1) with polyester or epoxy resins.

Easy implementation.

Release film with all resins and elastomers.

Glue for vacuum infusion and RTM

FOGTAC glue, intended for the vacuum infusion and RTM injection process, ensures perfect adhesion of the various reinforcements during draping.

It has a powerful bonding force which limits consumption.

Color: colorless

With its misting effect, the evaporation of solvents is facilitated and makes it possible to quickly obtain a tack on the surface of the reinforcements, while limiting the quantity deposited between the different layers.

FOGTAC glue does not interfere with resin flow and does not cause marking problems.

DIATEX offers a range of fittings, valves, adapters and consumable hoses for vacuum infusion.
This range of fittings and valves is available in several diameters to cover all needs.

The systems combine three vacuum consumables into a three-layer unit: a peel ply, a perforated film ELA20P0 permeable to resin and gases, a net bleeder on top.

There are 2 INFUPEEL versions, with 2 different peel ply :

• INFUPEEL® DIANET PES90
• INFUPEEL ®DIANET PA80

Used in manufacturing processes for vacuum infusion of composite materials.

De-oiled. Heat set. This easy-to-use solution eliminates the technical risk of overlap or of the omitted layer. Save time and optimise the production with INFUPEEL.

The systems combine two vacuum consumables into a two-layer unit (a perforated film and a net bleeder on top).

There are 7 INFUPLEX® versions with 5 different net bleeders.

INFUPLEX is also a very simple solution to lay up the bagging materials.

• Used in manufacturing processes for vacuum infusion of composite materials.
• De-oiled. Heat set.

.

The Infusion Plug Eco range has been redesigned in an Eco-responsible and Economical way : Weight gain divided by 3.6 including wood load (reeds and vine shoots)

INFUSION PLUG Eco are specific connectors for DIADRAIN.

To reduce leak risks and manufacturing costs, DIATEX developped a new range of connectors : INFUSION PLUG.

INFUTAC is made for the assembly of dry reinforcements and vacuum devices in vacuum infusion and RTM processes.

• Holding of hybrid materials
• Optimal adhesion during the molding
• Low drying shrinkage
• Exact application thanks to ultrafine spraying and green tracer
• High instantaneous adhesion

INFUTAC adhesive, made for vacuum infusion process, ensures a perfect tack of the reinforcements during the molding. The glue does not interfere on the surface quality and structural integrity.

INFUTAC is made for the assembly of dry reinforcements and vacuum devices in vacuum infusion and RTM processes.

• Holding of hybrid materials
• Optimal adhesion during the molding
• Low drying shrinkage
• Exact application thanks to ultrafine spraying and green tracer
• High instantaneous adhesion

INFUTAC adhesive, made for vacuum infusion process, ensures a perfect tack of the reinforcements during the molding. The glue does not interfere on the surface quality and structural integrity.

Manufactured from polyester film, coated with high performance silicone adhesive, K7666 pressure sensitive tapes are used for multi-purpose functions: holding down vacuum bagging materials, thermocouple wires, masking-off and protection.

• Can be used in a range of applications including vacuum moulding or vacuum infusion, in oven or autoclave.
• Good chemical resistance.

DIATEX offers a range of fittings, valves, adapters and consumable hoses for vacuum infusion.
This range of fittings and valves is available in several diameters to cover all needs.

DIATEX offers a range of fittings, valves, adapters and consumable hoses for vacuum infusion.
This range of fittings and valves is available in several diameters to cover all needs.

Allows easy cutting of all reinforced PVC hoses.

Not to be used with METALLIC SPIRAL hose.

Polyvalent sealant tape recommended for room temperature applications and able to undergo exothermic temperature up to 140°C.

• Economic and ideal for use on metallic composite tools.
• Especially developed for wind blade producers working in high humidity and high temperature environment.
• Easy to release from the tools once the mould has cooled down to room temperature.
• No contamination on the mould surface.

MEGATAC adhesive is made for the assembly of dry reinforcements and vacuum devices in vacuum infusion and RTM processes. The glue has a powerful bonding force.
The high adhesive strength of MEGATAC glue allows the application of numerous fabrics and cores (foam, balsa wood…).

ADVANTAGES :

• Available in spray : WEB type spraying, low volatility.
• Powerful bonding force

1. No degradation/alteration of the glue due to freezing.
2. Heat the glue to room temperature before use.
3. Do not place/store the glue cans on the floor with temperatures below 15°C.

High tenacity standard peel ply and economic made by DIATEX designed to be used on epoxy and polyester composite systems.

The fabric leaves a fine surface impression for priming and secondary bonding.

For phenolic systems, use the polyester version DIATEX PES90.

• Adhesive version (PA80AD) available for RTM and Infusion processes.
• Easy removal.
• There is no release agent or silicon in the fabric so there is no contamination.
• 1M X 100M

High tenacity standard and economic peel ply designed to be used with epoxy, phenolic and polyester composite systems. The high tenacity fabric leaves a rough surface impression for priming and secondary bonding. PES 90 is a synthetic fiber that offers a peel ply surface free from contamination

• Its porosity allows a good migration of the exceeding resin to the breather/bleeder.
• Available in full width or bands.
• Scoured. Heat-setted.
• No release agent or silicon in the fabric.

Extra large extruded advanced copolymer vacuum film.
This film behaves 3 layers: 2 auto-release copolymer layers and one polyamide layer in the middle.

• Can be used for either vacuum moulding or vacuum infusion technologies. PO120 allows the moulding of complex forms.
• Exceptional conformable characteristics.
• Can be used in direct contact to the resin.
• Styrene resistant film.
• Non porous.

SPIRAL MP is a microporous vacuum channel used for vacuum infusion parts manufacturing. SPIRAL MP is made of a spiral tube wrapped in the PES90MP microporous peel ply. To reduce marking, you can use the

SPIRAL MP is a microporous vacuum channel used for vacuum infusion parts manufacturing. SPIRAL MP is made of a spiral tube wrapped in the PES90MP microporous peel ply. To reduce marking, you can use the microporous DIADRAIN MP.

Very fast implementation of vacuum channels
Very flexible. Easy to cut to size.

• Very fast implementation of vacuum channels
• Very flexible. Easy to cut to size.

The SPIRALPLUG Eco range has been re-designed with an Eco-responsible and Economical approach:

• 80% less plastic used compared to a traditional connector
• Addition of fillers of vegetable origin (reed; vine shoots)

SPIRALPLUG Eco are specific connectors for vacuum or resin.

With their Ω shape, they can be clipped directly onto adapted spiral tubes.

In the upper part, their internal conical shapes allow an easy insertion and a good tightening to facilitate the installation of the consumables.

To reduce leak risks and manufacturing costs, DIATEX developped a new range of connectors

.

DIATEX offers a range of fittings, valves, adapters and consumable hoses for vacuum infusion.
This range of fittings and valves is available in several diameters to cover all needs.

.

DIATEX offers a range of fittings, valves, adapters and consumable hoses for vacuum infusion.
This range of fittings and valves is available in several diameters to cover all needs.
