Introduction

In the ever-evolving composite industry, the demand for materials that enhance performance while reducing weight is paramount. Crestapol 1260, a urethane methacrylate (UMa) resin, stands out as an innovative solution that meets these demands. This high-performance resin is designed to work seamlessly with carbon fibers, offering significant advantages over traditional epoxy and vinyl-ester resins. Let’s explore the unique features of Crestapol 1260 and why it is the preferred choice for composite applications.

The Need for High-Performance Resins

Composite materials are increasingly used in industries such as aerospace, automotive, and marine, where the balance of strength, stiffness, and weight is critical. Traditional resins like epoxy and vinyl-ester have served the industry well but come with limitations, particularly when paired with carbon fibers. Crestapol 1260 addresses these challenges, offering superior mechanical, thermal, and environmental performance.

Key Features of Crestapol 1260

Mechanical Performance

• Tensile Strength: Crestapol 1260 offers a tensile strength of 76 MPa, surpassing general-purpose epoxies (63-67 MPa) and closely matching marine epoxies (73-75 MPa).
• Elastic Modulus: With an elastic modulus of 3.3 GPa, it ensures robust stiffness, comparable to marine epoxies and higher than general-purpose epoxies.
• Elongation at Break: At 3.2%, Crestapol 1260 provides a balanced elongation, making it less brittle compared to vinyl-ester resins.

Thermal Performance

• Glass Transition Temperature (Tg): The resin boasts a Tg of 131°C (268°F), significantly higher than typical epoxies and vinyl-esters, ensuring stability under high temperatures.
• Heat Deflection Temperature (HDT): With an HDT of 107°C (225°F), Crestapol 1260 maintains its structural integrity under thermal stress.

Environmental Resistance

• Inter-Laminar Shear Strength (ILSS): Crestapol 1260 demonstrates superior ILSS, retaining high strength even after harsh environmental conditioning, outperforming marine and general-purpose epoxies.

Processing Advantages

• Cure Time and Temperature: Crestapol 1260 offers a gel time of 35 minutes at 25°C (77°F) and cures fully within 24 hours at room temperature, followed by a 3-hour post-cure at 80°C (176°F). This efficient curing process simplifies production workflows.
• Surface Finish: The preferential shrinkage behavior of Crestapol 1260 results in excellent surface finishes and molding tolerances, reducing the need for extensive post-processing.

Compatibility and Versatility

• Carbon Fiber Integration: Crestapol 1260 does not require specialized sizing for carbon fibers, ensuring excellent fiber-matrix adhesion and interfacial properties.
• Adhesives and Gelcoats: The resin is compatible with standard adhesives and gelcoats used in composite manufacturing, providing versatility across various applications.

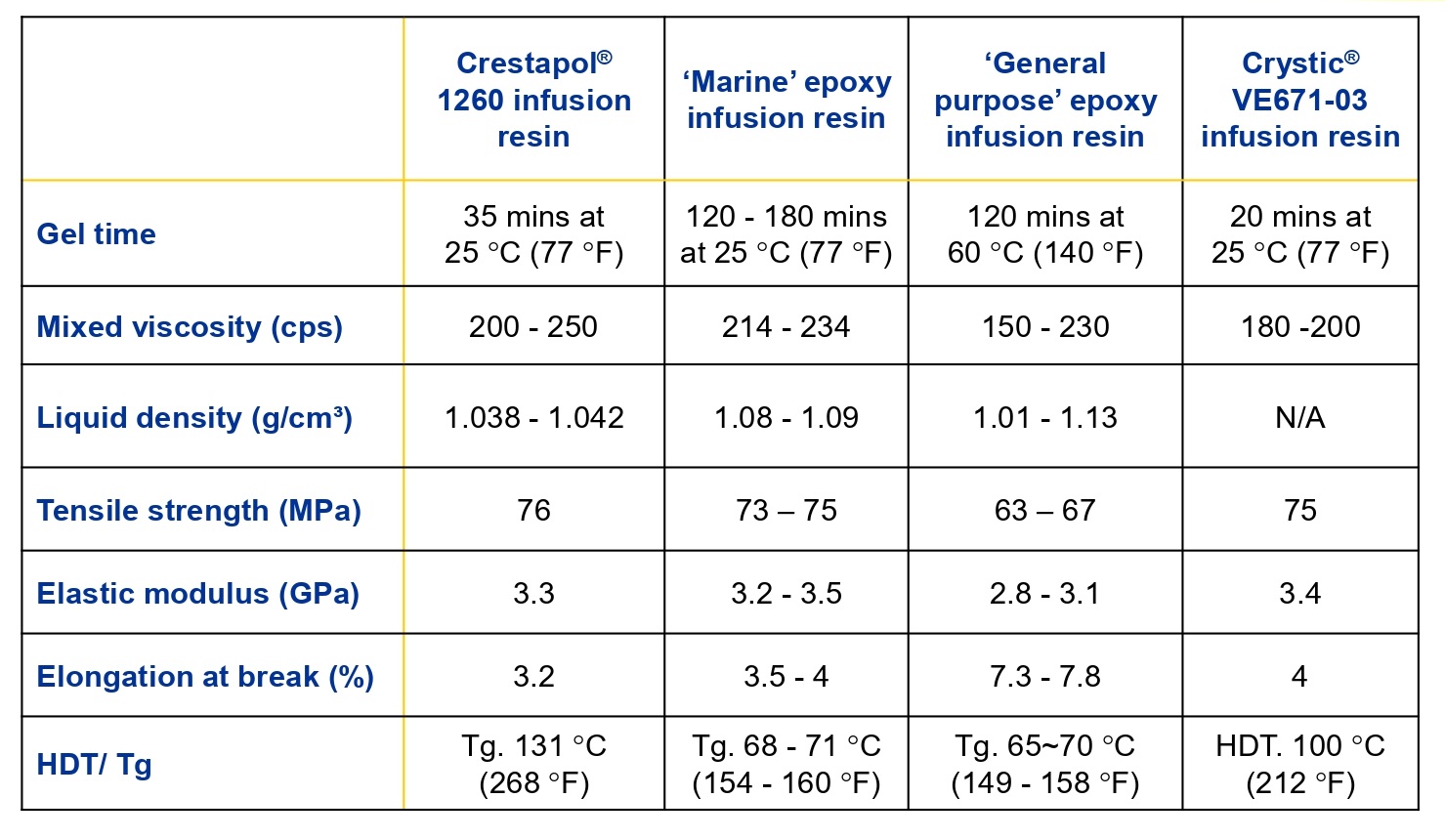

Comparison with Other Resins

Crestapol 1260 vs. Marine Epoxy

• Mechanical Properties: Crestapol 1260 has a tensile strength of 76 MPa and an elastic modulus of 3.3 GPa, slightly exceeding marine epoxy’s properties.
• Thermal Stability: With a Tg of 131°C and an HDT of 107°C, Crestapol 1260 surpasses marine epoxy’s Tg of 68-71°C and HDT of 100°C.
• Environmental Resistance: Crestapol 1260 retains 92% of its ILSS after conditioning, significantly higher than marine epoxy’s 85%.

Crestapol 1260 vs. General-Purpose Epoxy

• Tensile Strength and Modulus: General-purpose epoxies have a tensile strength of 63-67 MPa and an elastic modulus of 2.8-3.1 GPa, whereas Crestapol 1260 offers 76 MPa and 3.3 GPa.
• Thermal Properties: General-purpose epoxies have a Tg of 65-70°C and HDT around 100°C, while Crestapol 1260’s Tg is 131°C, and its HDT is 107°C.
• Durability: Crestapol 1260 shows superior performance in environmental tests, with a 92% retention in ILSS compared to general-purpose epoxy’s 78%.

Crestapol 1260 vs. Vinyl-Ester Resins

• Performance Without Post-Cure: Vinyl-esters often require post-curing at 80°C for 3 hours to reach performance levels comparable to Crestapol 1260, which achieves its mechanical properties without additional curing steps.
• Flexural Strength: Crestapol 1260 maintains a flexural strength of 1031.86 MPa, surpassing vinyl-ester’s 899.59 MPa.

Why Choose Crestapol 1260 Over Competitors?

• Enhanced Performance: Crestapol 1260 outperforms traditional resins in key mechanical and thermal properties, making it suitable for high-stress environments.
• Processing Efficiency: Faster curing times and room temperature processing reduce energy costs and improve manufacturing throughput.
• Environmental Resilience: Superior resistance to environmental degradation ensures long-term durability of composites.
• Cost-Effectiveness: By combining high performance with low-cost processing, Crestapol 1260 offers a compelling value proposition for manufacturers.

Conclusion

Crestapol 1260 represents a significant advancement in resin technology for the composite industry. Its superior mechanical, thermal, and environmental performance, combined with processing efficiency and versatility, make it an ideal choice for high-performance composite applications. By choosing Crestapol 1260, manufacturers can achieve enhanced product performance, reduced production costs, and greater overall value, positioning themselves ahead of competitors in the market.
